The inductive electronic water ruler SCSW02 uses advanced technology and features anti-corrosive naval copper contacts, stainless steel protective casing, and high-performance sealing materials for special treatment inside. The product is frost-resistant, heat-resistant, anti-aging, lightning-proof, and immune to electromagnetic interference. It can be used for water level measurement in places such as road waterlogging, rivers, lakes, reservoirs, hydropower stations, irrigation areas, water plants, wastewater treatment plants, and tunnels with accumulated water.

1、

2、 Structure and Wiring

（1） Water Level Ruler Appearance Structure

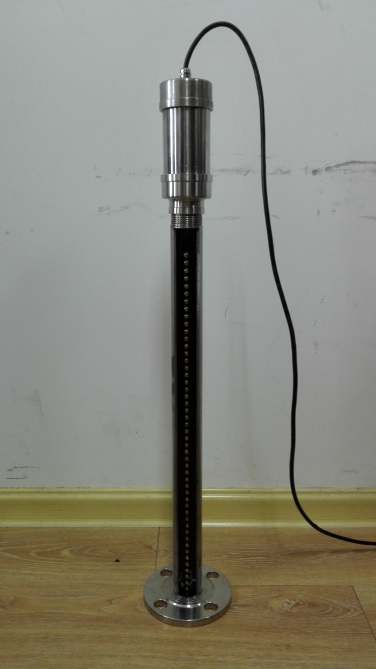

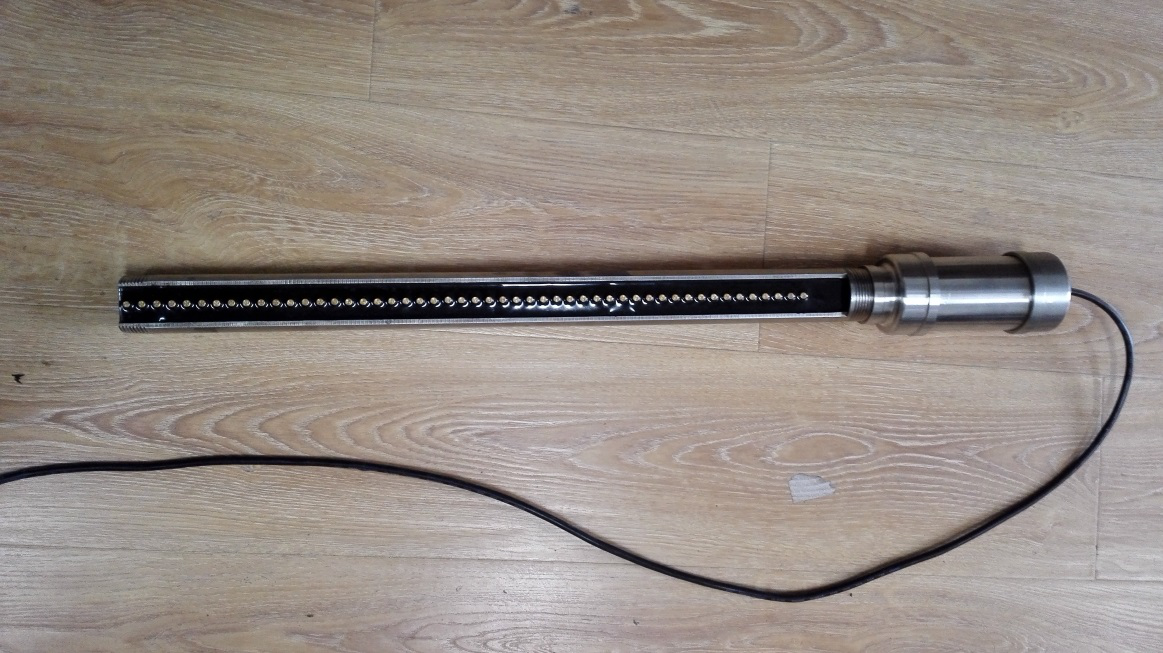

The water level ruler adopts a stainless steel shell, anti-corrosion naval brass touch points, and anti-corrosion pressure-resistant water-tight potting. The upper end of the water level ruler is connected to the terminal equipment through RS485.

（2） Water Level Ruler Wiring Definition

The cable of the water level ruler is drawn from the upper end of the ruler. The line definition includes power lines and 485 communication lines. The color definition of the wiring is as follows:

3、 Installation

Depending on the application environment, the water level gauge adopts different installation methods:

（1）Flange fixed installation on the ground for roads

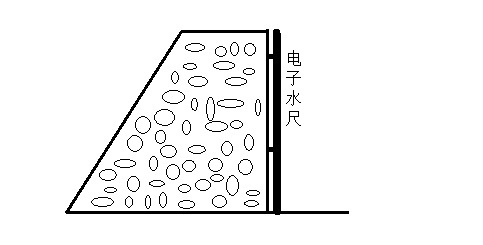

（2） U-shaped hoop connector fixed on the wall for dams or places close to the wall
