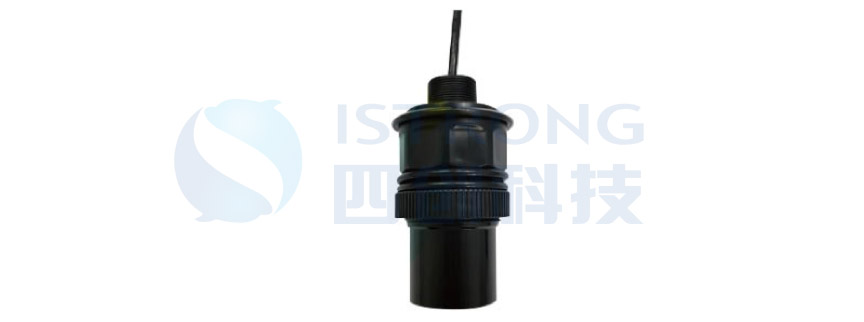

Ultrasonic Liquid Level Monitor

The ultrasonic liquid level monitor utilizes the principle of ultrasonic pulse for non-contact measurement, making it a non-contact, highly reliable, cost-effective, easy-to-install, and maintain liquid level measuring instrument. It can meet the requirements of level measurement without contacting the medium, integrating liquid level and water level measurement, display, and transmission functions. The measured medium is virtually unrestricted, making it widely applicable to urban manholes, reservoirs, lakes, municipal engineering, metallurgy, chemical industry, and other scenarios, enabling the measurement of various liquid and solid material heights.

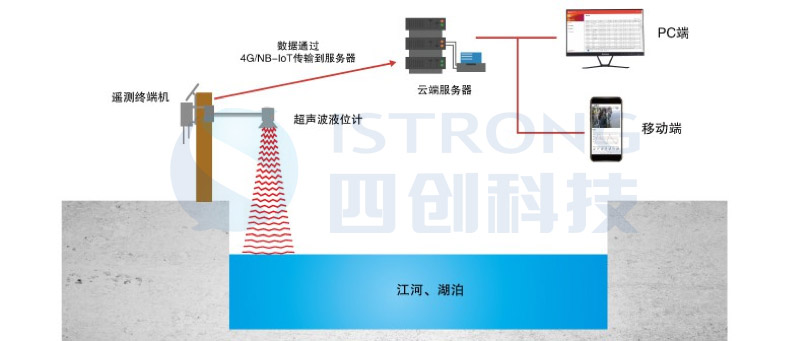

System Architecture

The ultrasonic liquid level monitor uses an ultrasonic sensor to monitor the liquid level height in real-time, displaying it locally, and reporting to the cloud server via 4G/NB-IoT communication methods, providingdata support for industry user alerts and scheduling, and enhancing remote liquid level monitoring capabilities.

Main Functions

Water level collection: Automatically collects water levels according to the set collection period.
Parameter setting: Supports local parameter settings.
Communication method: Supports RS485 communication method and Modbus communication protocol.

Product Features

High reliability, IP68 protection level, high-temperature resistance, and corrosion resistance.
High accuracy, non-contact measurement, and built-in automatic calibration function.
Strong anti-interference, built-in interference echo suppression function, and stable operation in strong magnetic field environments.

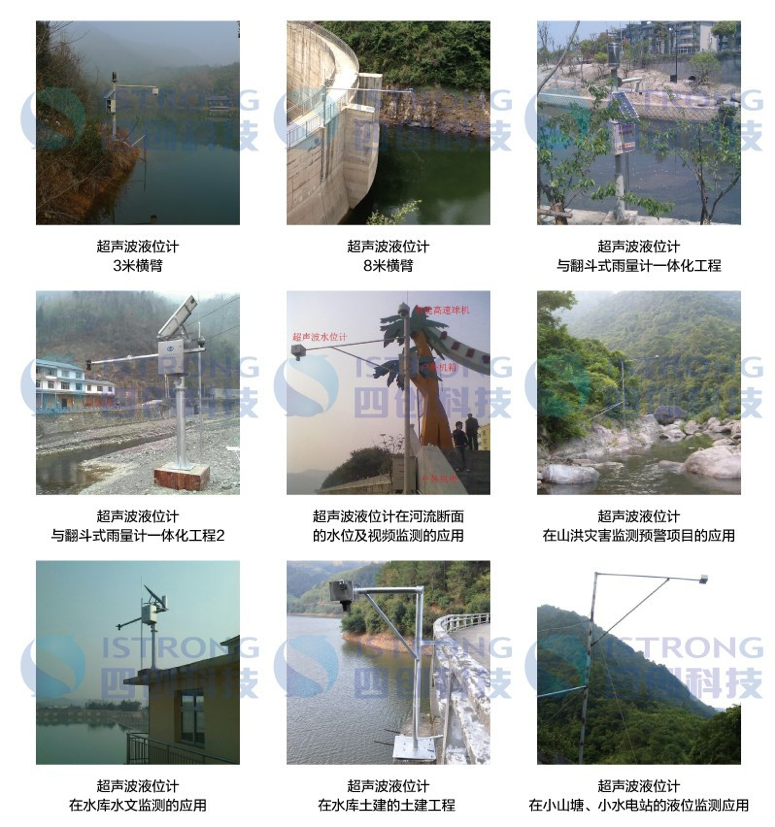

Application Scenarios

The ultrasonic liquid level monitor is a non-contact measuring device using the principle of ultrasonic pulse, featuring easy installation, high measurement accuracy, stability, reliability, and wide applicability. Real-time liquid level monitoring can be achieved by fixing it with a bracket, and the built-in data transmission unit and lithium battery solve the cumbersome problem of on-site liquid level observation. It is suitable for urban manholes, reservoirs, lakes, municipal engineering, metallurgy, chemical industry, and other scenarios, enabling online measurement of various liquid and solid material heights.
